React Runtime

Preview: The React low-code runtime is part of the preview Low-Code System. Runtime APIs, generated routes, metadata contracts, and UI behavior may change before general availability.

The React runtime renders low-code pages from backend metadata. Generated low-code React applications include the required package and wiring.

{
  "dependencies": {
    "@volo/abp-react-lowcode": "<version>"
  }
}

Configure the Runtime

Call configureLowCode once during React startup. Pass the application's Axios instance, notifications, localization, navigation integration, and optional extension points.

import {
  configureLowCode,
  LowCodeLocalizationProvider,
} from '@volo/abp-react-lowcode';

function configureLowCodeRuntime(translate?: (key: string, defaultValue: string) => string) {
  configureLowCode({
    axios: api,
    onError: (err) => toast.error(err.message),
    onSuccess: (message) => toast.success(message),
    translate,
    navigate: (path) => router.navigate({ to: path }),
    validators: {
      customRule: (value) => value ? null : 'Value is required.',
    },
  });
}

Wrap the router with LowCodeLocalizationProvider when you want dynamic labels and validation messages to use the application localization pipeline.

<LowCodeLocalizationProvider translate={translate}>
  <RouterProvider router={router} />
</LowCodeLocalizationProvider>

Add Dynamic Routes

Use createDynamicRoutes in the TanStack Router tree.

import { createDynamicRoutes } from '@volo/abp-react-lowcode';

const dynamicEntityRoute = createDynamicRoutes(rootRoute, {
  beforeLoad: authGuard,
});

const routeTree = rootRoute.addChildren([
  indexRoute,
  accountRoute,
  identityRoute,
  dynamicEntityRoute,
]);

Runtime pages are then available under:

/dynamic/<page-name>
/dynamic/<page-name>/create
/dynamic/<page-name>/edit/<record-id>
/dynamic/<page-name>/<record-id>

createDynamicRoutes also accepts basePath when your application should mount dynamic pages somewhere other than /dynamic.

Generated low-code React templates do not register every possible dynamic page path in TanStack Router's module augmentation. Page names come from backend metadata, so keep dynamic low-code routes out of the static route augmentation or cast the dynamic path inside your router navigation adapter if your application uses strict typed navigation.

Add Dynamic Menu Items

Use useMenuItems to load menu items defined by low-code pages. Merge them with your static route configuration and apply the same permission checks used by the rest of the application.

import { useMenuItems } from '@volo/abp-react-lowcode';

const { data: dynamicMenuItems } = useMenuItems({
  enabled: isAuthenticated,
});

Each menu item includes its page name, display name, icon, order, grouping information, and children.

Page Types

The runtime includes built-in renderers for these page types:

Page type	Runtime behavior
dataGrid	Searchable, sortable CRUD grid
kanban	Card board grouped by a configured property
calendar	Calendar view using date/time properties
gallery	Card/gallery view, optionally image-backed
form	Standalone form page
dashboard	Dashboard rows with chart, list, and number visualizations

The generated data grid page includes:

• Search
• Sorting
• Paging
• Action menu
• Create and edit forms
• Permission-aware commands
• Display values for lookups
• File and image fields
• Export
• Type-aware filters

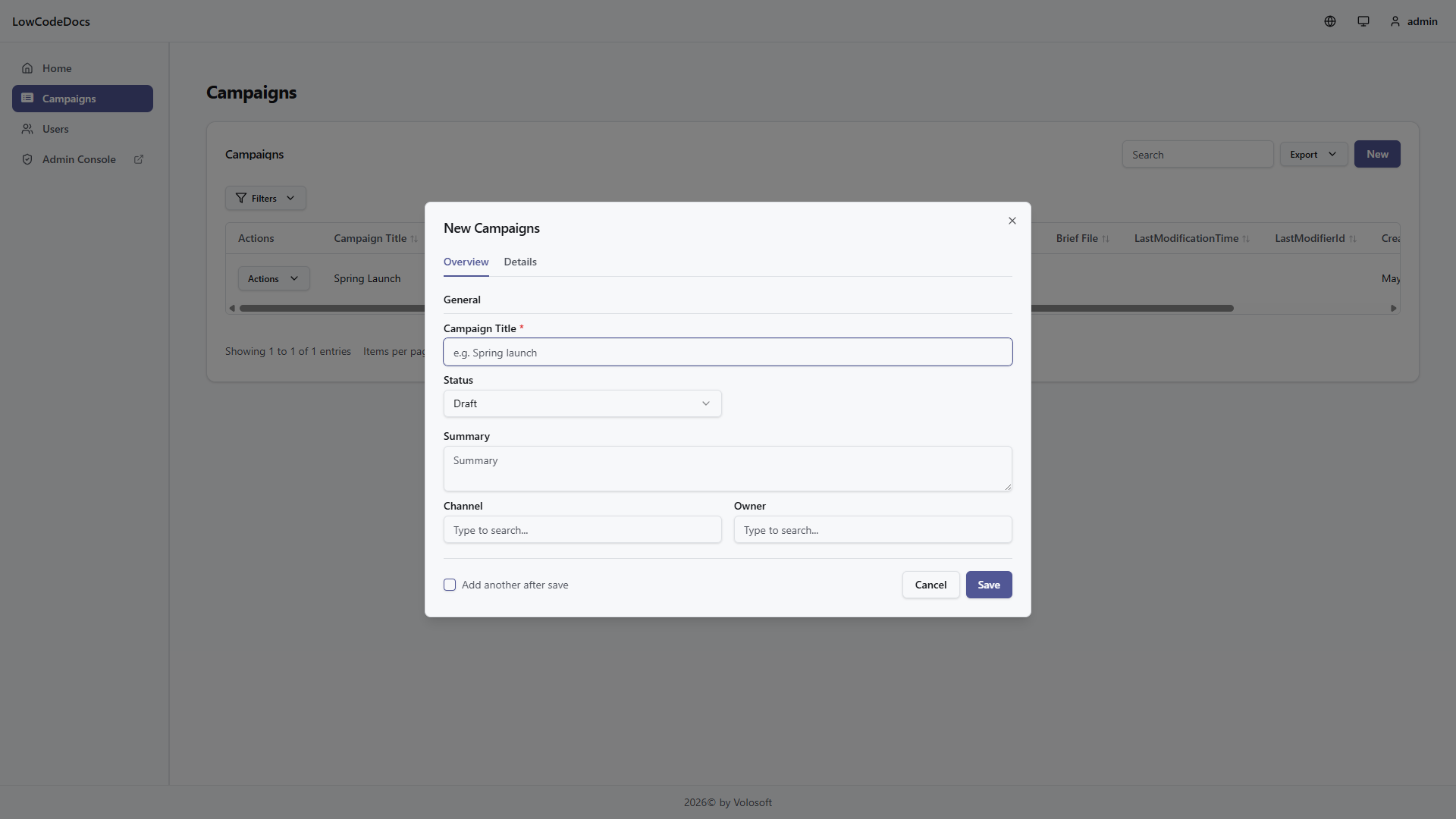

Forms

Create and edit forms are rendered from form metadata. Tabs, groups, labels, placeholders, controls, default values, validation rules, conditional form rules, and save actions come from the designer.

The runtime can render forms in a modal or on full pages. Full-page forms use the dynamic create/edit routes and the navigate callback configured in configureLowCode.

Filters

Filters are rendered as an ABP-style advanced filter area. The runtime shows all configured filters and only exposes operator UI where it is useful.

File and image filters use a single Has value concept. The value selector controls whether the filter is applied:

• All does not add a filter.
• Yes returns records with a value.
• No returns records without a value.

The URL keeps the existing lcFilters query parameter shape. The runtime maps user-friendly filter choices to the existing backend FilterType values.

Export

The runtime export button opens a small menu with direct Excel and CSV actions. If the selected page has exportable file or image fields and bundle export is allowed in the Designer, the menu also shows Files (.zip). Direct export uses the current search, sorting, filters, and visible exportable columns from the page definition maintained in the Low-Code Designer. Use Export options when users need a different row, column, or file output scope.

Available options:

Option	Behavior
Rows: all matching records	Exports all records matching the current search, filters, and sorting
Rows: current page	Exports only the current page using the runtime skipCount and maxResultCount
Columns: visible exportable columns	Exports columns that are both visible and exportable in the current page definition, ordered by Designer export order
Columns: all exportable fields	Exports page fields marked exportable in the Low-Code Designer, including fields that are hidden from the grid, ordered by Designer export order
File/image: file name	Writes the uploaded file name, or an empty value
File/image: metadata columns	Writes file name, content type, size, width, and height columns
File/image: download links	Writes file name, temporary download URL, link expiry, content type, size, width, height, and status columns

Spreadsheet export stays tabular. It does not embed file bytes in cells. Use download-link columns when spreadsheet readers need a controlled way to fetch individual files, or use Files (.zip) when they need the actual file set. ZIP export contains manifest.csv and files under files/{recordId}/{fieldName}/{safeFileName}. The manifest reports missing, malformed, unlinked, skipped, and exported files.

The columns available in the runtime export dialog and their default order are controlled by the page-level Export Fields section in the Low-Code Designer. The runtime cannot use the dialog to bypass non-exportable fields.

The runtime first requests a short-lived token and then calls the Excel, CSV, or ZIP export endpoint. The export token is single-use and is bound to the current page, entity, tenant, child page, and foreign-access context. Temporary file links use separate short-lived tokens bound to the exported record field and blob. Text that looks like a spreadsheet formula is escaped in exported headers and cells. If a caller manually sends a non-exportable field name, the backend rejects the request.

Endpoint	Description
GET /api/low-code/pages/{pageName}/download-token	Gets a short-lived token
GET /api/low-code/pages/{pageName}/export/excel	Downloads Excel
GET /api/low-code/pages/{pageName}/export/csv	Downloads CSV
GET /api/low-code/pages/{pageName}/export/files	Downloads a ZIP with selected file/image fields
GET /api/low-code/pages/export/files/{token}	Downloads one temporary file link from spreadsheet link mode

Child and foreign-access pages use the matching /children/{childEntityName} and /foreign-access/{sourceEntityName} page endpoints.

Troubleshooting:

Symptom	Likely cause
Invalid or expired download token	The token is single-use, expired, or was requested for a different page/context
Export row limit exceeded	Narrow the filters, export the current page, or increase LowCode:Export:MaxRows
File link expired	Re-run export; temporary file links are intentionally short-lived
File not exported marker	The file was missing, malformed, no longer linked to the exported record, or skipped by ZIP file count/size limits
ZIP bundle export disabled	Enable file bundle export for the page in the Low-Code Designer

Files and Attachments

File and image fields use the page file endpoints. Record-level attachments use attachment endpoints when attachments are enabled for the entity.

API	Purpose
uploadPageFile	Upload a file/image field value for a page field
downloadPageFile	Download a file/image field value
buildPageFileDownloadUrl	Build a URL for image previews or download links
usePageFileObjectUrl	Create and revoke an object URL for file previews
useEntityAttachments	Load record attachments
useUploadEntityAttachments	Upload one or more attachments
useDeleteEntityAttachment	Delete an attachment
downloadEntityAttachment	Download an attachment

Uploads are still validated on the backend by the configured file size and content type rules. Downloads are checked against the owning record before returning the blob, and user-provided file names should be treated as display text only. Use usePageFileObjectUrl for previews so object URLs are revoked when the component unmounts.

Hooks and Components

The package exposes hooks for composing custom pages around the same backend API:

API	Purpose
usePageDefinitions, usePageDefinition	Load page metadata
useFormDefinition	Load a named runtime form
useDashboardDefinition, useDashboardData	Load dashboard metadata and data
usePageData, usePageRecord	Load list data and a single record
usePageCreate, usePageUpdate, usePageDelete	Mutate records
usePageLookup	Load lookup/autocomplete options
usePageExport	Export current list state

The package also exports renderer components such as DynamicPage, DynamicEntityPage, DynamicKanbanRenderer, DynamicCalendarRenderer, DynamicGalleryRenderer, DynamicDashboardRenderer, DynamicFormPageRenderer, DynamicFilters, DynamicEntityForm, and ForeignKeyAutocomplete.

Extension Points

configureLowCode supports these extension points:

Option	Purpose
validators	Custom validation functions keyed by rule type
pageRenderers	Override built-in page renderers or add new page types
fieldRenderers	Override field rendering by field type or customRenderer
translate	Resolve low-code localization keys through the application
navigate	Connect full-page form navigation to the application router

Custom page renderers receive PageRendererProps. Custom field renderers receive FieldRendererProps.

Runtime API Surface

The React runtime talks to these backend endpoints:

Endpoint	Purpose
GET /api/low-code/ui/menu-items	Dynamic menu tree
GET /api/low-code/ui/pages	Page list
GET /api/low-code/ui/pages/{pageName}	Page summary metadata
GET /api/low-code/ui/pages/{pageName}/ui-definition	Runtime page UI definition
GET /api/low-code/ui/forms/{formName}	Runtime form definition
GET /api/low-code/ui/dashboards/{pageName}	Dashboard definition
GET /api/low-code/pages/{pageName}/data	Page data with search, filters, sorting, and paging
GET /api/low-code/pages/{pageName}/data/{id}	Single page record
POST /api/low-code/pages/{pageName}/data	Create record
PUT /api/low-code/pages/{pageName}/data/{id}	Update record
DELETE /api/low-code/pages/{pageName}/data/{id}	Delete record
GET /api/low-code/pages/{pageName}/lookup/{fieldName}	Lookup options
POST /api/low-code/pages/{pageName}/files/{fieldName}	Upload file/image field
GET /api/low-code/pages/{pageName}/data/{id}/files/{fieldName}/{blobName}	Download file/image field
GET /api/low-code/pages/{pageName}/data/{id}/attachments	List attachments
POST /api/low-code/pages/{pageName}/data/{id}/attachments	Upload attachment
DELETE /api/low-code/pages/{pageName}/data/{id}/attachments/{attachmentId}	Delete attachment
POST /api/low-code/dashboards/{pageName}/data	Dashboard visualization data

Troubleshooting

If a generated page does not appear:

• Confirm the page exists in the designer and has a page name.
• Confirm the user has the generated page/entity permissions.
• Confirm createDynamicRoutes is part of the router tree.
• Confirm useMenuItems is enabled for authenticated users.
• Confirm the backend host has run migrations and seed data.

If authentication loops back to the login page, check the generated OpenIddict clients and React root URL in appsettings.json.
