abp/docs/en/UI/AspNetCore/Theming.md

ASP.NET Core MVC / Razor Pages: UI Theming

Introduction

ABP Framework provides a complete UI Theming system with the following goals:

• Reusable application modules are developed theme-independent, so they can work with any UI theme.
• UI theme is decided by the final application.
• The theme is distributed via NuGet/NPM packages, so it is easily upgradable.
• The final application can customize the selected theme.

In order to accomplish these goals, ABP Framework;

• Determines a set of base libraries used and adapted by all the themes. So, module and application developers can depend on and use these libraries without depending on a particular theme.
• Provides a system that consists of navigation menus, toolbars, layout hooks... that is implemented by all the themes. So, the modules and the application to contribute to the layout to compose a consistent application UI.

Current Themes

Currently, two themes are officially provided:

• The Basic Theme is the minimalist theme with the plain Bootstrap style. It is open source and free.
• The Lepton Theme is a commercial theme developed by the core ABP team and is a part of the ABP Commercial license.

There are also some community-driven themes for the ABP Framework (you can search on the web).

Overall

The Base Libraries

All the themes must depend on the @abp/aspnetcore.mvc.ui.theme.shared NPM package, so they are indirectly depending on the following libraries:

• Twitter Bootstrap as the fundamental HTML/CSS framework.
• JQuery for DOM manipulation.
• DataTables.Net for data grids.
• JQuery Validation for client side & unobtrusive validation
• FontAwesome as the fundamental CSS font library.
• SweetAlert to show fancy alert message and confirmation dialogs.
• Toastr to show toast notifications.
• Lodesh as a utility library.
• Luxon for date/time operations.
• JQuery Form for AJAX forms.
• bootstrap-datepicker to show date pickers.
• Select2 for better select/combo boxes.
• Timeago to show automatically updating fuzzy timestamps.
• malihu-custom-scrollbar-plugin for custom scrollbars.

These libraries are selected as the base libraries and available to the applications and modules.

Abstractions / Wrappers

There are some abstractions in the ABP Framework to make your code independent from some of these libraries too. Examples;

• Tag Helpers makes it easy to generate the Bootstrap UIs.
• JavaScript Message and Notification APIs provides abstractions to use the Sweetalert and Toastr.
• Forms & Validation system automatically handles the validation, so you mostly don't directly type any validation code.

The Standard Layouts

The main responsibility of a theme is to provide the layouts. There are three pre-defined layouts must be implemented by all the themes:

• Application: The default layout which is used by the main application pages.
• Account: Mostly used by the account module for login, register, forgot password... pages.
• Empty: The Minimal layout that has no layout components at all.

Layout names are constants defined in the Volo.Abp.AspNetCore.Mvc.UI.Theming.StandardLayouts class.

The Application Layout

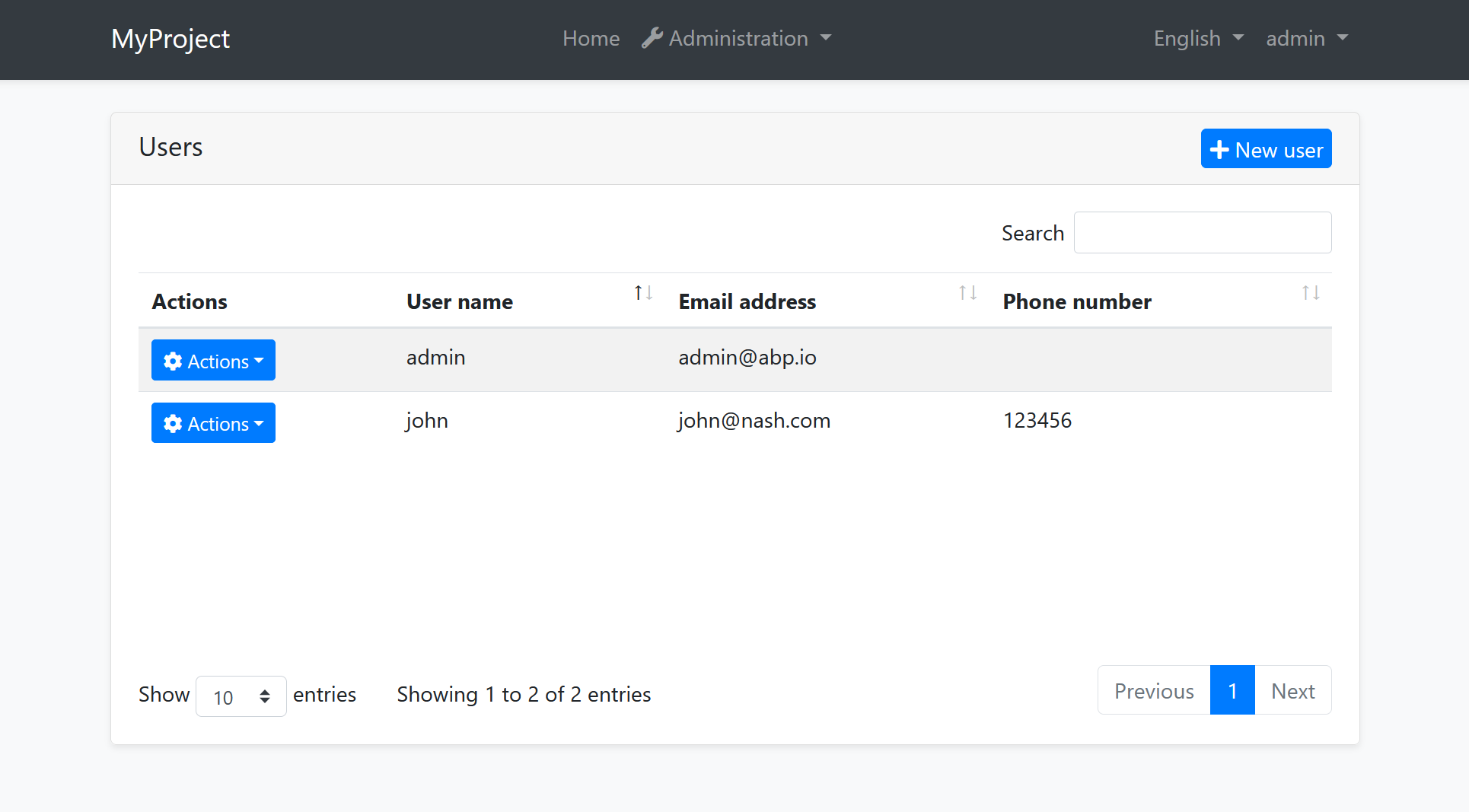

This is the default layout which is used by the main application pages. The following image shows the user management page in the Basic Theme application layout:

And the same page is shown below with the Lepton Theme application layout:

As you can see, the page is the same, but the look is completely different in the themes above.

The application layout typically includes the following parts;

• A main menu
• Main Toolbar with the following components;
  • User menu
  • Language switch dropdown
• Page alerts
• The page content (aka RenderBody())
• Layout hooks

Some themes may provide more parts like breadcrumbs, page header & toolbar... etc. See the Layout Parts section.

The Account Layout

The Account layout is typically used by the account module for login, register, forgot password... pages.

This layout typically provides the following parts;

• Language switch dropdown
• Tenant switch area (if the application is multi-tenant and the current is resolved by the cookie)
• Page alerts
• The page content (aka RenderBody())
• Layout hooks

The Basic Theme renders the top navigation bar for this layout too (as shown above)

Here, the account layout of the Lepton Theme:

The Lepton Theme shows the application logo and footer in this layout.

You can override theme layouts completely or partially in an application to customize it.

The Empty Layout

The empty layout provides an empty page, however it typically includes the following parts;

• Page alerts
• The page content (aka RenderBody())
• Layout hooks

Implementing a Theme

The Easy Way

The easiest way to create a new theme is to copy the Basic Theme Source Code and customize it. Once you get a copy of the theme in your solution, remove the Volo.Abp.AspNetCore.Mvc.UI.Theme.Basic NuGet package and reference to the local project.

The ITheme Interface

ITheme interface is used by the ABP Framework to select the layout for the current page. A theme must implement this interface to provide the requested layout path.

This is the ITheme implementation of the Basic Theme.

using Volo.Abp.AspNetCore.Mvc.UI.Theming;
using Volo.Abp.DependencyInjection;

namespace Volo.Abp.AspNetCore.Mvc.UI.Theme.Basic
{
    [ThemeName(Name)]
    public class BasicTheme : ITheme, ITransientDependency
    {
        public const string Name = "Basic";

        public virtual string GetLayout(string name, bool fallbackToDefault = true)
        {
            switch (name)
            {
                case StandardLayouts.Application:
                    return "~/Themes/Basic/Layouts/Application.cshtml";
                case StandardLayouts.Account:
                    return "~/Themes/Basic/Layouts/Account.cshtml";
                case StandardLayouts.Empty:
                    return "~/Themes/Basic/Layouts/Empty.cshtml";
                default:
                    return fallbackToDefault
                        ? "~/Themes/Basic/Layouts/Application.cshtml"
                        : null;
            }
        }
    }
}

• [ThemeName] attribute is required and a theme must have a unique name, Basic in this sample.
• GetLayout method should return a path if the requested layout (name) is provided by the theme. The Standard Layouts should be implemented if the theme is aimed to be used by a standard application. It may implement additional layouts.

Once the theme implements the ITheme interface, it should add the theme to the AbpThemingOptions in the ConfigureServices method of the module.

Configure<AbpThemingOptions>(options =>
{
    options.Themes.Add<BasicTheme>();
});

The IThemeSelector Service

ABP Framework allows to use multiple themes together. This is why options.Themes is a list. IThemeSelector service selects the theme on the runtime. The application developer can set the AbpThemingOptions.DefaultThemeName to set the theme to be used, or replace the IThemeSelector service implementation (the default implementation is DefaultThemeSelector) to completely control the theme selection on runtime.
